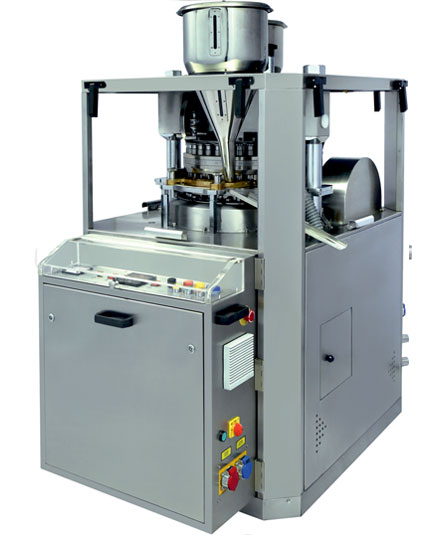

V3 Press Medium Speed Tablet Press
Salient Features :
- Designed as per cGMP Standards
- Suitable For Medium Batch Production
- Available in 25/27, 31, 35 & 37 Stations
- Sturdy, Robust Heavy Base for Handling High Pressure at
High Speed with less Vibrations - Turret Manufactured from SG 500/7 crack resistant Special Graded Cast Iron
- Auto Lubrication System
- Onboard Ampere Meter to Indicate Motor Overload
- Digital Tablet Counter
- User friendly , Easy to Clean , Quick Changeover & Hassle Free Maintenance
- Timing Belt & Pulley
- A. C. Invertre Drive with Vector Control
- Rollers with Bearings
- Lower Punch Seals
- Low Oil Indicator
- AC Drive on Main Motor
- Pressure Roller with Bearings
- Lower Punch Powder Seal
- Auto Lubrication System
- Timing Belt & Pulley
- Interlocking Guards
Safety Feature :
- Overload Pressure Release Mechanism
- Turret Anti Turning Mechanism
- Overload Protection
- Interlocking Safety Guards with Limit Switch
- Emergency Stop Button
Optional :
- ELNP Turret
- Ph. Bronze Gearing with Hardened Steel Worm
- PLC Control System
- Force Feeder
- Bi Layer Attachment
- Punch Penetration System
- Bi Layer Attachment
- Upper Punch Penetration
Download Catalogue
Send Enquiry
Watch Videos
Frequently Asked Questions
What type of production is the V3 Press suitable for?
The V3 Press Medium Speed Tablet Press is suitable for medium batch production. It is designed with a sturdy, robust heavy base for handling high pressure at high speed with less vibration, making it appropriate for consistent and controlled tablet manufacturing operations.
In how many station configurations is the V3 Press available?
The V3 Press is available in 25, 27, 31, 35, and 37 station configurations. This allows manufacturers to select the appropriate model based on their required production capacity.
What construction features are included in the V3 Press?
The turret is manufactured from SG 500/7 crack-resistant special graded cast iron. The machine includes timing belt pulley system, AC inverter drive with vector control, rollers with bearings, pressure roller with bearings, lower punch seals, lower punch powder seal, auto lubrication system, and interlocking guards.
What monitoring and control systems are provided?
The V3 Press includes an onboard ampere meter to indicate motor overload and a digital tablet counter for monitoring production. It also operates with AC drive on main motor.
What safety features are included in the V3 Press?
Safety features include overload pressure release mechanism, turret anti-turning mechanism, overload protection, interlocking safety guards with limit switch, and an emergency stop button.
What optional features are available with this model?
Optional features include ELNP Turret, Ph. Bronze Gearing with Hardened Steel Worm, PLC Control System, Force Feeder, Bi Layer Attachment, Punch Penetration System, and Upper Punch Penetration.

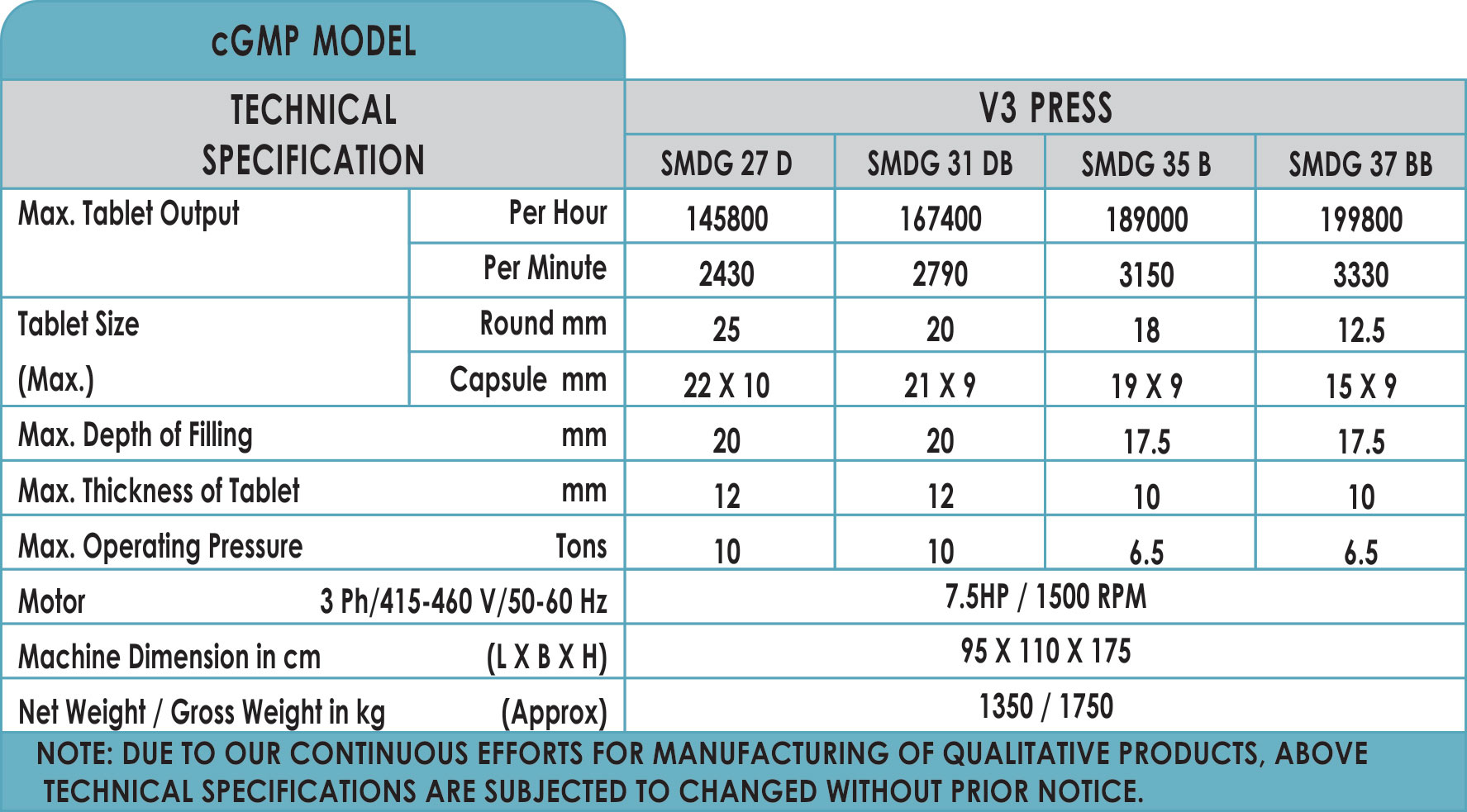

What is the output capacity of the V3 Press models?
The output capacity depends on the selected model. For example, SMDG 27 D delivers 145,800 tablets per hour, SMDG 31 DB delivers 167,400 tablets per hour, SMDG 35 B delivers 189,000 tablets per hour, and SMDG 37 BB delivers 199,800 tablets per hour.
What tablet sizes can be produced using the V3 Press?
The machine supports round tablet sizes up to 25 mm, 20 mm, 18 mm, and 12.5 mm depending on the selected model. Capsule-shaped tablet sizes vary according to configuration.
What are the compression and operating specifications?
The maximum depth of filling ranges up to 20 mm or 17.5 mm depending on the model. The maximum thickness of tablet ranges up to 12 mm or 10 mm, and the maximum operating pressure ranges up to 10 tons or 6.5 tons based on configuration.
What are the motor and machine specifications?
The V3 Press operates on 3 Ph / 415–460 V / 50–60 Hz power supply with a 7.5 HP / 1500 RPM motor. The machine dimensions are 95 x 110 x 175 cm (L x B x H), and the approximate net weight is 1350 kg with a gross weight of 1750 kg.
