The V3 Press Max is designed for medium to high-capacity tablet production requirements. It is built with AC drive on main motor and feeder motor, pressure roller with bearings, and interlocking guards to ensure stable operation during tablet compression.

The machine includes AC drive on main motor and feeder motor, pressure roller with bearings, lower punch powder seal, powder level sensor, auto lubrication system, and timing belt pulley. These features support controlled and consistent tablet manufacturing operations.

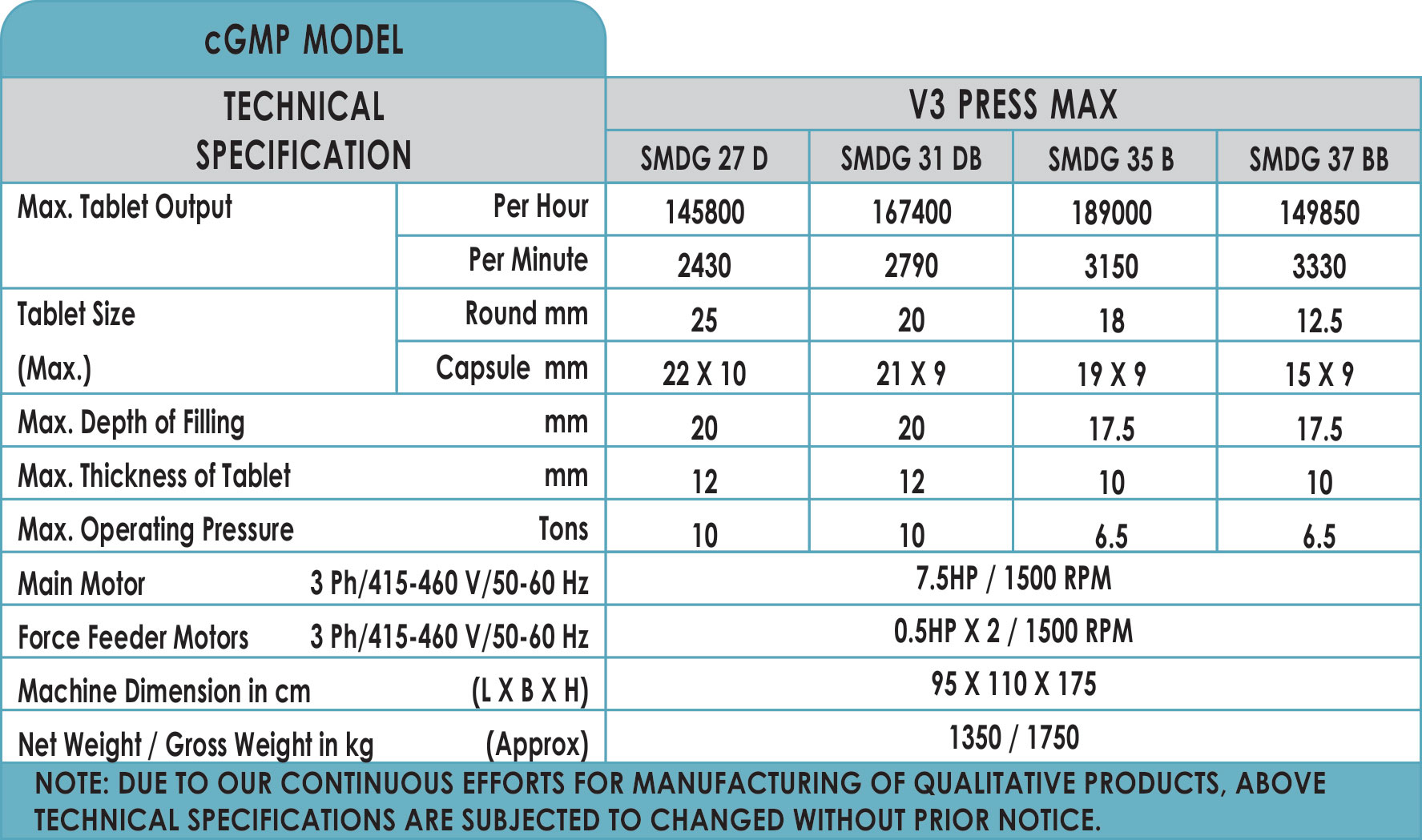

The maximum output depends on the selected model configuration. For example, models such as SMDG 27 D, SMDG 31 DB, SMDG 35 B, and SMDG 37 BB offer different production capacities per hour and per minute based on station configuration.

The V3 Press Max supports round tablet sizes up to 25 mm, 20 mm, 18 mm, and 12.5 mm depending on the selected model. Capsule-shaped tablet sizes vary according to the configuration.

The machine provides a maximum depth of filling up to 20 mm or 17.5 mm depending on the model. The maximum thickness of tablet ranges up to 12 mm or 10 mm, and the maximum operating pressure ranges up to 10 tons or 6.5 tons based on the configuration.

Optional features available include Bi Layer Attachment, Upper Punch Penetration, Onboard Parameter Controls, and Basic PLC System with HMI.

The main motor operates on 3 Ph / 415–460 V / 50–60 Hz with 7.5 HP / 1500 RPM. The force feeder motors operate on 3 Ph / 415–460 V / 50–60 Hz with 0.5 HP x 2 at 1500 RPM.

The machine dimensions are 95 x 110 x 175 cm (L x B x H). The approximate net weight is 1350 kg and the gross weight is 1750 kg.

Yes, bi-layer attachment is available as an optional feature for this model.

The machine includes onboard parameter controls and can be configured with a basic PLC system with HMI as an optional feature.
