Double Rotary Tablet Press
Salient Features :
- Designed as per cGMP Standards
- Suitable For Medium Batch Production
- Available in 25/27, 31, 35 & 37 Stations
- Sturdy, Robust Heavy Base for Handling High Pressure at
High Speed with less Vibrations - Turret Manufactured from SG 500/7 crack resistant Special Graded Cast Iron
- Centralized Lubrication System.
- Onboard Ampere Meter to Indicate Motor Overload
- Digital Tablet Counter
- User friendly , Easy to Clean , Quick Changeover & Hassle Free Maintenance.
- Variable Speed Pulley
Safety Feature :
- Overload Pressure Release Mechanism
- Turret Anti Turning Mechanism
- Overload Protection
- Interlocking Safety Guards with Limit Switch
- Emergency Stop Button
Optional :
- ELNP Turret
- Ph. Bronze Gearing with Hardened Steel Worm
- PLC Control System
- Force Feeder
- Auto Lubrication System
- Bi Layer Attachment
- Punch Penetration System
- Bi Layer Attachment
- Upper Punch Penetration
Standard
Download Catalogue
Send Enquiry
Watch Videos
Frequently Asked Questions
What type of production is the Double Rotary Tablet Press suitable for?
The Double Rotary Tablet Press is suitable for medium batch production. It is designed to handle high pressure at high speed with less vibration, making it appropriate for consistent tablet manufacturing requirements.
In how many station configurations is this machine available?
The machine is available in 25, 27, 31, 35, and 37 station configurations, allowing manufacturers to select the appropriate setup based on their required output capacity.

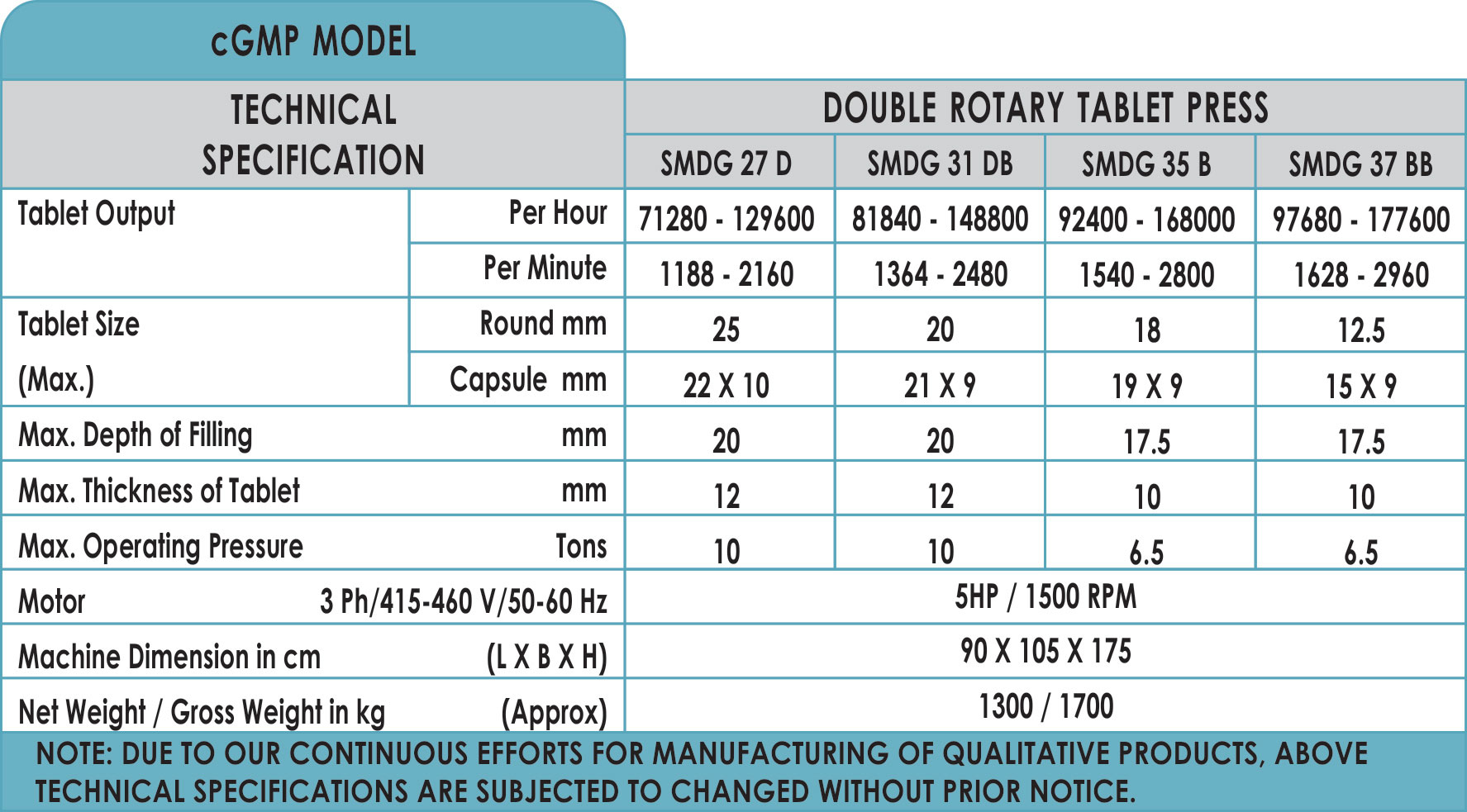

What is the output capacity of the Double Rotary Tablet Press?
The output capacity varies depending on the selected model. Tablet production ranges differ per hour and per minute based on the station configuration and model such as SMDG 27 D, SMDG 31 DB, SMDG 35 B, and SMDG 37 BB.
What tablet sizes can be produced on this machine?
The maximum round tablet size ranges from 25 mm to 12.5 mm depending on the selected model. Capsule-shaped tablet sizes range from 22 x 10 mm to 15 x 9 mm according to the configuration.
What construction materials are used in the machine?
The press is built on a sturdy, robust heavy base designed for handling high pressure at high speed with less vibration. The turret is manufactured from SG 500/7 crack-resistant special graded cast iron.
What lubrication and monitoring systems are included?
The machine includes a centralized lubrication system. It also features an onboard ampere meter to indicate motor overload and a digital tablet counter for monitoring production.
What safety features are provided in this machine?
Safety features include an overload pressure release mechanism, turret anti-turning mechanism, overload protection, interlocking safety guards with limit switch, and an emergency stop button.
Are optional features available for this model?
Yes, optional features include ELNP Turret, Ph. Bronze Gearing with Hardened Steel Worm, PLC Control System, Force Feeder, Auto Lubrication System, Bi Layer Attachment, Punch Penetration System, and Upper Punch Penetration.
What are the compression and operating specifications?
The machine provides a maximum depth of filling up to 20 mm or 17.5 mm depending on the model. The maximum thickness of tablet ranges up to 12 mm or 10 mm, and the maximum operating pressure ranges from 10 tons to 6.5 tons depending on the configuration.
What are the motor and machine specifications?
The machine operates on a 3 Ph / 415–460 V / 50–60 Hz power supply with a 5 HP / 1500 RPM motor. The machine dimensions are 90 x 105 x 175 cm (L x B x H), and the approximate net weight is 1300 kg with a gross weight of 1700 kg.
