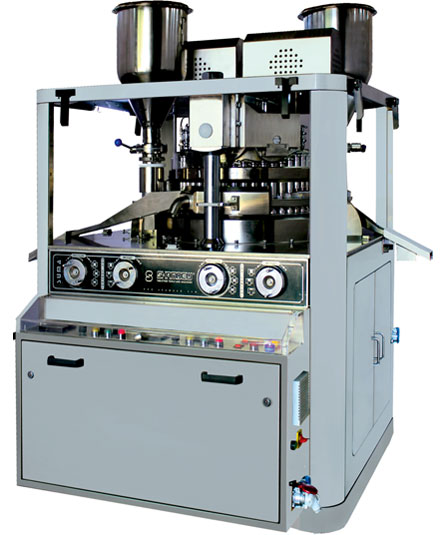

HIGH SPEED TABLET PRESS
Salient Features :
- Designed as per cGMP Standards
- Suitable For Medium to Large Batch Production
- Available in 37, 45, 49 & 55 Stations
- Fully Mechanical Press Erected on Cast Iron Body which ensures
better performance even at High Speed & High Pressure - Turret Manufactured from SG 500/7 crack resistant Special Graded Cast Iron
- Auto Lubrication System
- Onboard Ampere Meter to Indicate Motor Overload
- Digital Tablet Counter
- User friendly , Easy to Clean , Quick Changeover & Hassle Free Maintenance
- Timing Belt & Pulley
- A.C. Invertre Drive with Vector Control
- Rollers with Bearings
- Lower Punch Seals
- Low Oil Indicator
- Self Adjusting Pre-Compression System
- Force Feeding System
- On Board Controls of Parameters like Tablet Pressure & Tablet Weight
- Pressure Dial Gauges
- Ph. Bronze Gearing with Hardened Steel Worm
- Fully Mechanical Press
- Erected on Cast Iron Body
- AC Drive on Main Motor
- AC Drive on Feeder Motor
- Self Adjusting Pre-Compression
- Onboard Parameter Controls
- Pressure Roller with Bearings
- Lower Punch Powder Seal
- Auto Lubrication System
- Timing Belt & Pulley
- Pressure Dial Gauges
- Interlocking Guards
Optional Features :
- Bi Layer Attachment
- Basic PLC System with HMI
Download Catalogue
Send Enquiry
Watch Videos
Frequently Asked Questions
What type of production is the SUMA High Speed Tablet Press suitable for?
The SUMA High Speed Tablet Press is suitable for medium to large batch production. It is designed as a fully mechanical press erected on a cast iron body to ensure stable performance even at high speed and high pressure.
In how many station configurations is the SUMA Press available?
The SUMA Press is available in 37, 45, 49, and 55 station configurations. This allows manufacturers to select a model based on required production capacity and output.
What are the key mechanical features of the SUMA Press?
The machine includes AC drive on main motor and feeder motor, timing belt pulley system, rollers with bearings, lower punch seals, lower punch powder seal, pressure dial gauges, and interlocking guards. It also features a self-adjusting pre-compression system and force feeding system for controlled tablet compression.
What monitoring and control systems are provided?
The SUMA Press includes onboard ampere meter to indicate motor overload, digital tablet counter, and onboard controls for parameters such as tablet pressure and tablet weight. Pressure dial gauges are also provided.

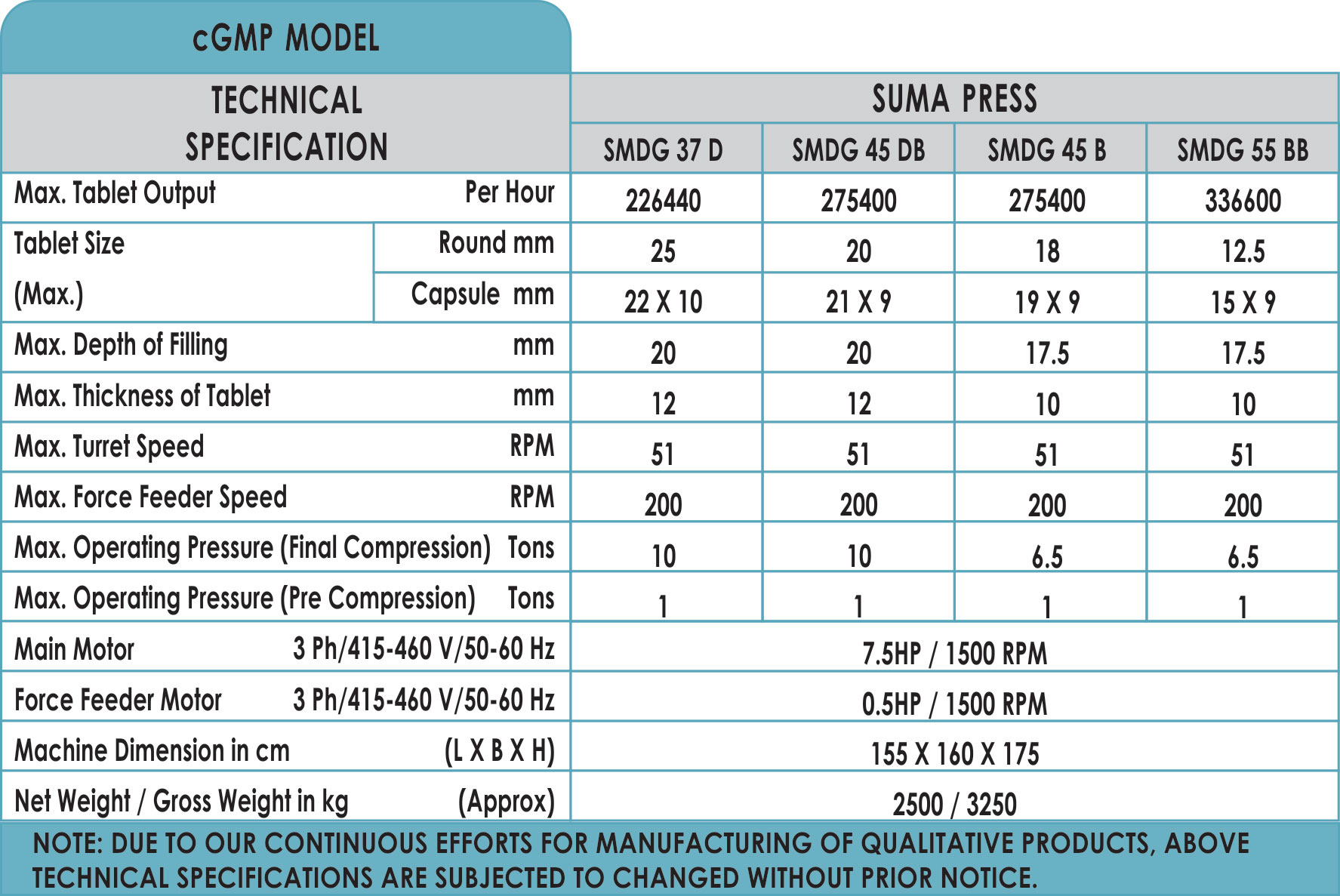

What is the maximum output capacity of the SUMA Press?
The maximum tablet output varies by model. For example, SMDG 37 D delivers up to 226,440 tablets per hour, SMDG 45 DB and SMDG 45 B deliver up to 275,400 tablets per hour, and SMDG 55 BB delivers up to 336,600 tablets per hour.
What tablet sizes can be produced on this machine?
The machine supports round tablet sizes up to 25 mm, 20 mm, 18 mm, and 12.5 mm depending on the selected model. Capsule-shaped tablet sizes vary according to configuration.
What are the compression and operating specifications?
The maximum depth of filling ranges up to 20 mm or 17.5 mm depending on the model. The maximum thickness of tablet ranges up to 12 mm or 10 mm. The maximum operating pressure for final compression ranges up to 10 tons or 6.5 tons, and pre-compression operating pressure is up to 1 ton.
What motor and speed specifications are provided?
The main motor operates on 3 Ph / 415–460 V / 50–60 Hz with 7.5 HP / 1500 RPM. The force feeder motor operates on 3 Ph / 415–460 V / 50–60 Hz with 0.5 HP / 1500 RPM. The maximum turret speed is 51 RPM, and maximum force feeder speed is 200 RPM.
What optional features are available with the SUMA Press?
Optional features include Bi Layer Attachment and Basic PLC System with HMI.
What are the machine dimensions and weight?
The machine dimensions are 155 x 160 x 175 cm (L x B x H). The approximate net weight is 2500 kg and gross weight is 3250 kg.
