The SUMA Press Max is designed for high-speed tablet production. It is a fully mechanical press erected on a cast iron body and engineered for stable operation at high speed and high pressure.

The machine includes AC drive on main motor and feeder motor, self-adjusting pre-compression system, onboard parameter controls, pressure roller with bearings, lower punch powder seal, auto lubrication system, timing belt pulley, pressure dial gauges, and interlocking guards. A basic PLC system with HMI and push button controls is also included.

Optional features include Bi Layer Attachment and an Advanced PLC System with IPC + HMI & 21 CFR Part 11 compliance.

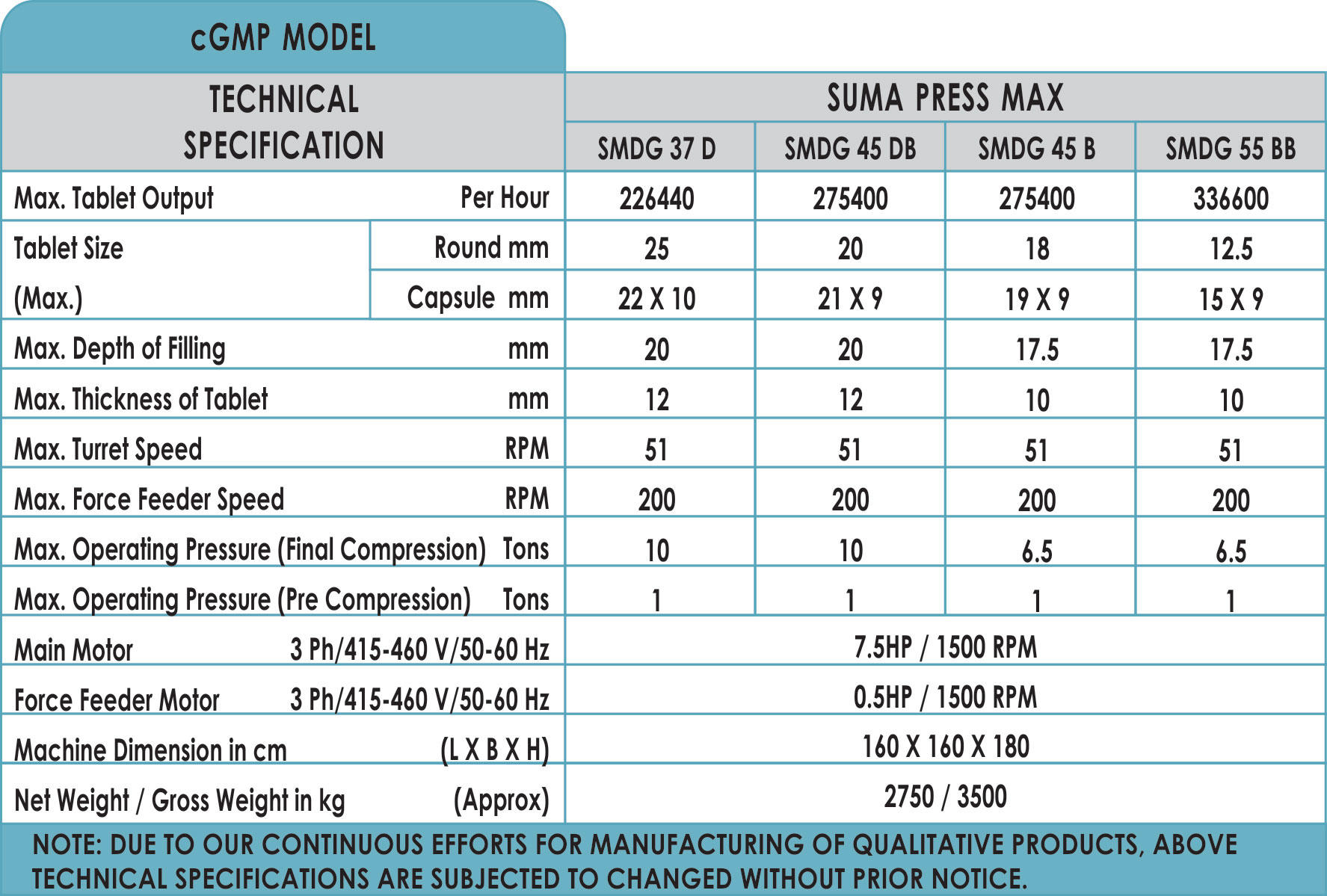

The maximum output varies by model configuration. For example, SMDG 37 D delivers up to 226,440 tablets per hour, SMDG 45 DB and SMDG 45 B deliver up to 275,400 tablets per hour, and SMDG 55 BB delivers up to 336,600 tablets per hour.

The machine supports round tablet sizes up to 25 mm, 20 mm, 18 mm, and 12.5 mm depending on the selected model. Capsule-shaped tablet sizes vary according to configuration.

The maximum depth of filling ranges up to 20 mm or 17.5 mm depending on the model. The maximum thickness of tablet ranges up to 12 mm or 10 mm. The maximum operating pressure for final compression ranges up to 10 tons or 6.5 tons, and pre-compression operating pressure is up to 1 ton.

The main motor operates on 3 Ph / 415–460 V / 50–60 Hz with 7.5 HP / 1500 RPM. The force feeder motor operates on 3 Ph / 415–460 V / 50–60 Hz with 0.5 HP / 1500 RPM. The maximum turret speed is 51 RPM, and the maximum force feeder speed is 200 RPM.

The machine dimensions are 160 x 160 x 180 cm (L x B x H). The approximate net weight is 2750 kg and gross weight is 3500 kg.

Yes, the machine includes onboard parameter controls and supports PLC-based operation with HMI.

Yes, bi-layer attachment is available as an optional feature in the SUMA Press Max.
