dust extractor
DE – 150 CFM
DE – 300 CFM – SINGLE DRAWER
DE – 300 CFM – TWIN DRAWER
De – Duster
DE – DUSTER
ELEVATING DE-DUSTER
Frequently Asked Questions

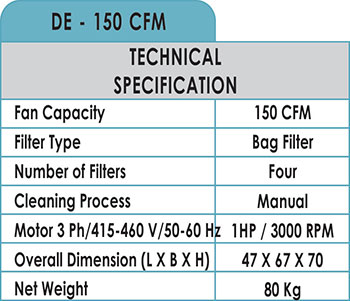

What is the fan capacity of the DE 150 CFM Dust Extractor?
The DE 150 CFM Dust Extractor has a fan capacity of 150 CFM. It is equipped with a bag filter system and includes four filters with manual cleaning process.
What are the motor and dimensional specifications of the DE 150 CFM model?
The motor operates at 3 Ph / 415–460 V / 50–60 Hz with 1 HP at 3000 RPM. The overall dimension is 47 x 67 x 70 cm, and the net weight is approximately 80 kg.

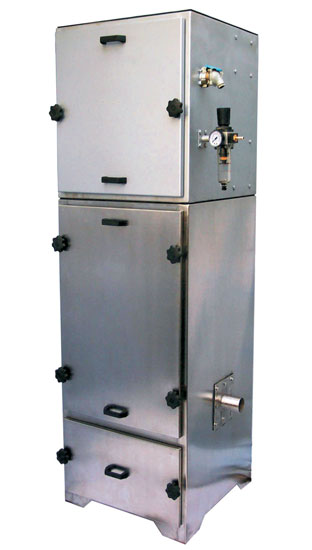

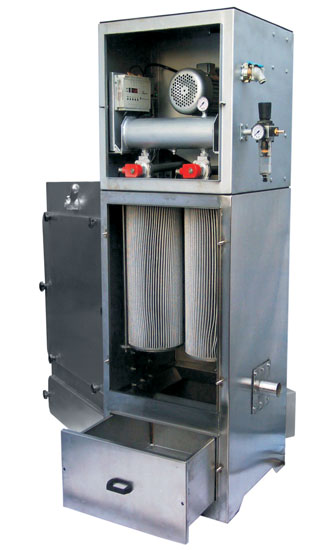

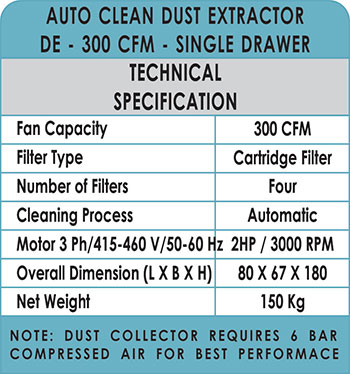

What are the main specifications of the DE 300 CFM Single Drawer model?
This model has a fan capacity of 300 CFM and uses a cartridge filter system with four filters. The cleaning process is automatic. The motor operates at 3 Ph / 415–460 V / 50–60 Hz with 2 HP at 3000 RPM.
Does the DE 300 CFM Single Drawer require compressed air?
Yes, the dust collector requires 6 bar compressed air for best performance.

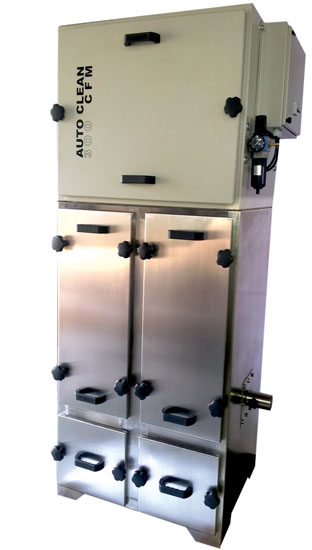

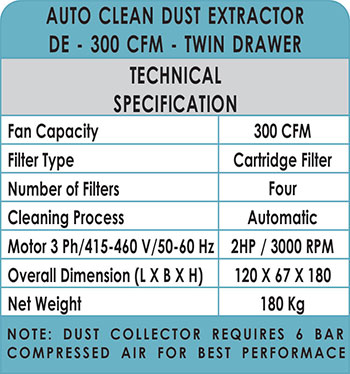

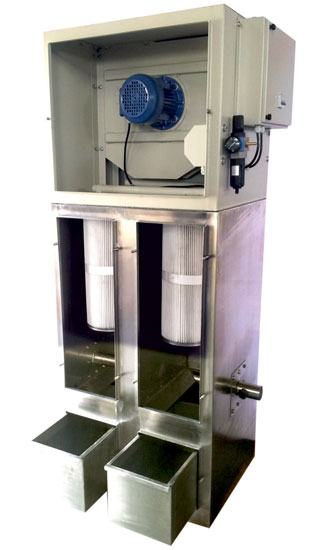

What differentiates the Twin Drawer model from the Single Drawer model?
The DE 300 CFM Twin Drawer model also has a 300 CFM fan capacity with cartridge filters and automatic cleaning process. It includes four filters and requires 6 bar compressed air for best performance.
What are the dimensional and motor specifications of the Twin Drawer model?
The motor operates at 3 Ph / 415–460 V / 50–60 Hz with 2 HP at 3000 RPM. The overall dimension is 120 x 47 x 180 cm, and the net weight is approximately 180 kg.

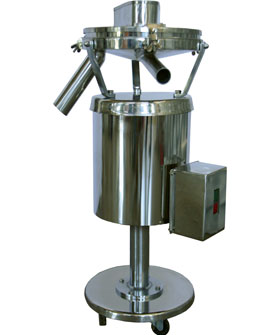

What is the output capacity of the Spiral De-Duster?
The Spiral De-Duster has an output capacity of 25,000 tablets per hour. It supports tablet sizes from 5 mm minimum up to 25 mm maximum.
What are the motor and size specifications of the Spiral De-Duster?
The motor operates at 3 Ph / 415–460 V / 50–60 Hz with 0.25 HP at 1500 RPM. The overall dimension is 48 x 48 x 100 cm, and the net weight is approximately 55 kg.

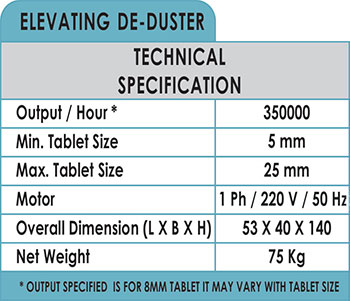

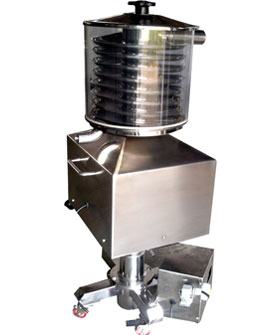

What is the output capacity of the Elevating De-Duster?
The Elevating De-Duster has an output capacity of 350,000 tablets per hour. It supports tablet sizes from 5 mm minimum up to 25 mm maximum.
What are the motor and dimensional specifications of the Elevating De-Duster?
The motor operates at 1 Ph / 220 V / 50 Hz. The overall dimension is 53 x 40 x 140 cm, and the net weight is approximately 75 kg.
